Core Exploration
Designed for surface exploration and core drilling.
Engineering Feature
core
NGE DRILLSOL
NGCORE100 (Trolley)

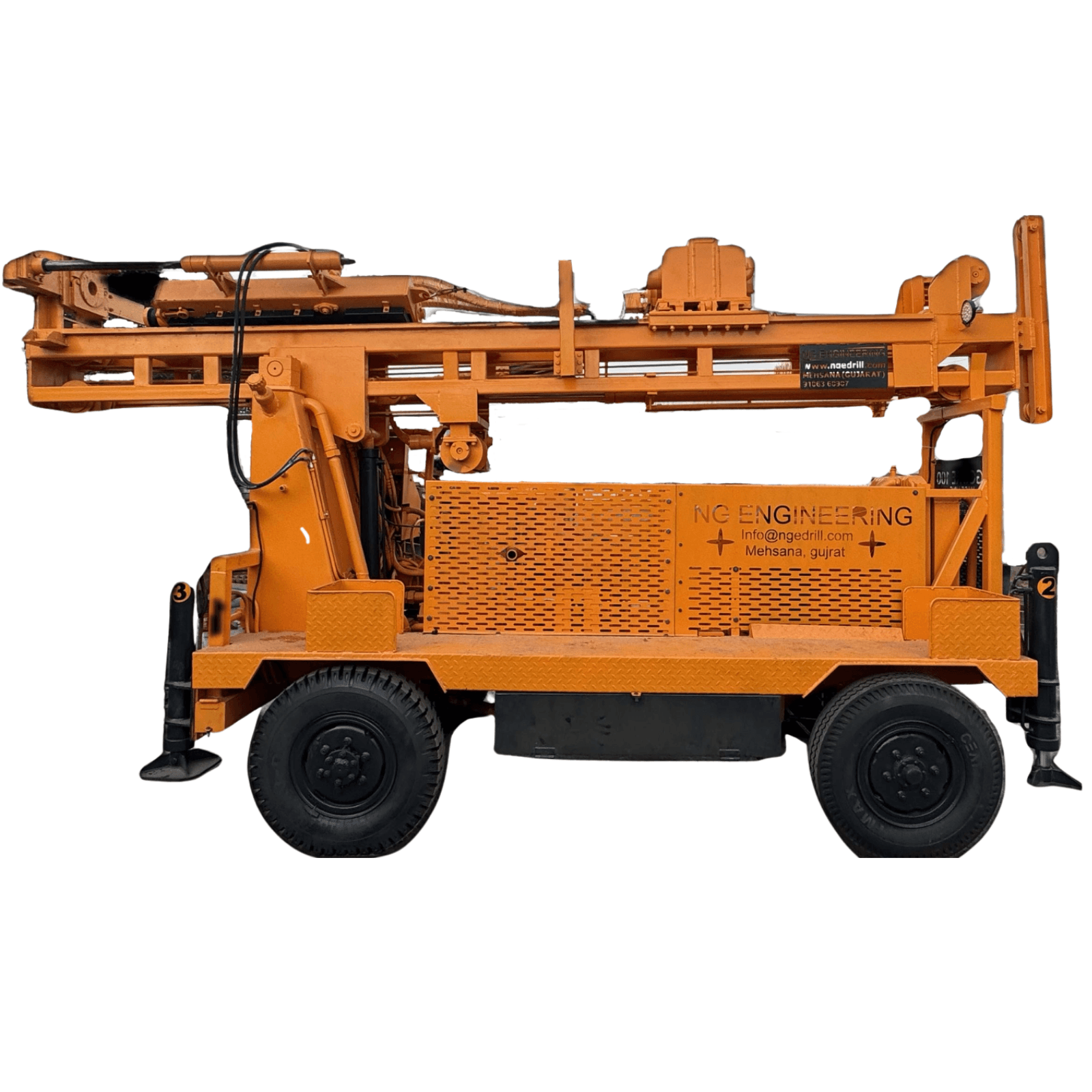

NGCORE100 (Trolley) Core Drilling Rig
Trolley-mounted surface exploration core drilling rig for geological and geotechnical investigation.
Engineered for demanding drilling applications
Application:Core
Model
NGCORE100 (Trolley)
Drilling Capacity
200 m
Drilling Capacity
200 m
Hole Size
NQ / HQ / PQ
Pull Up Capacity
12,000 kg
Pull Down Capacity
2,000 kg

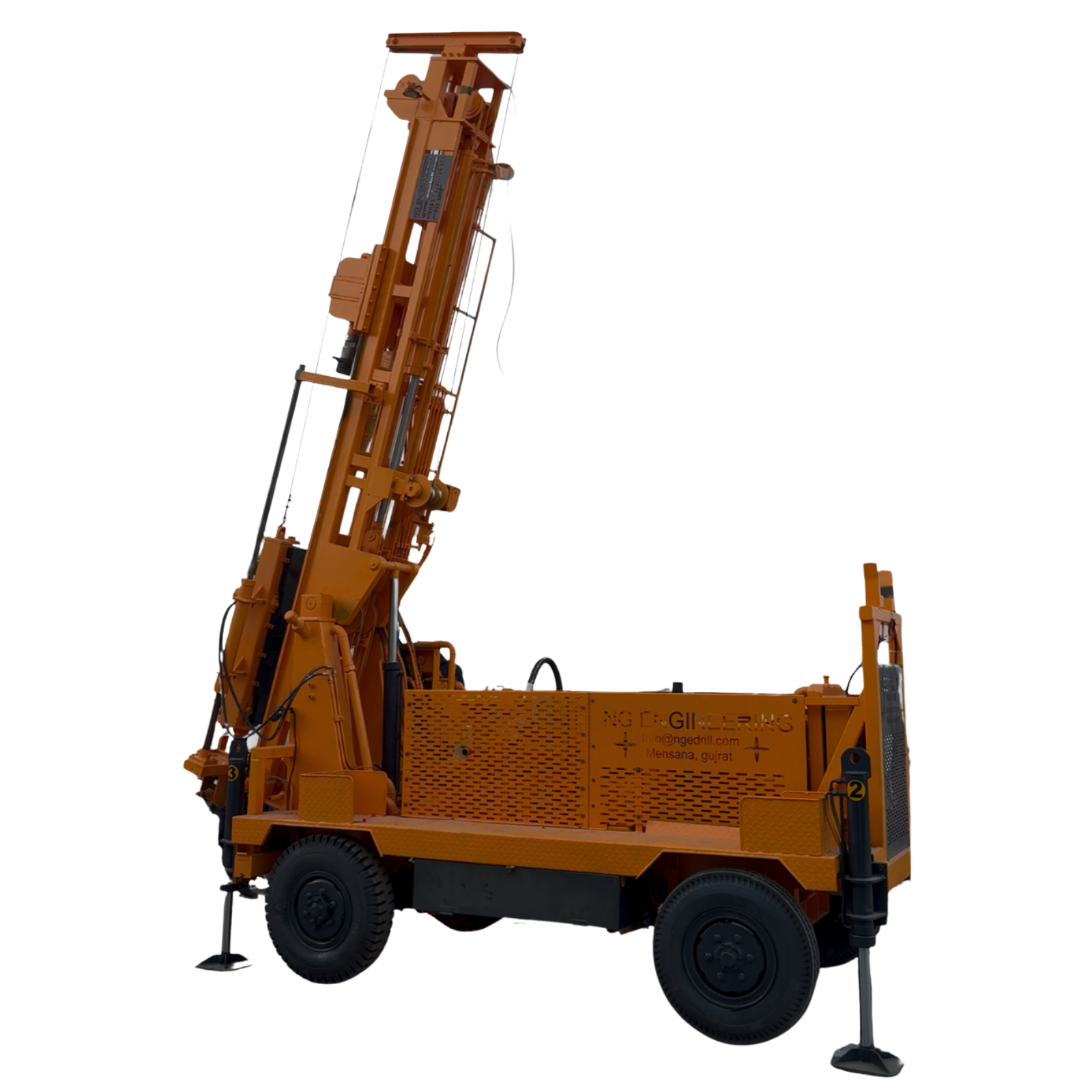

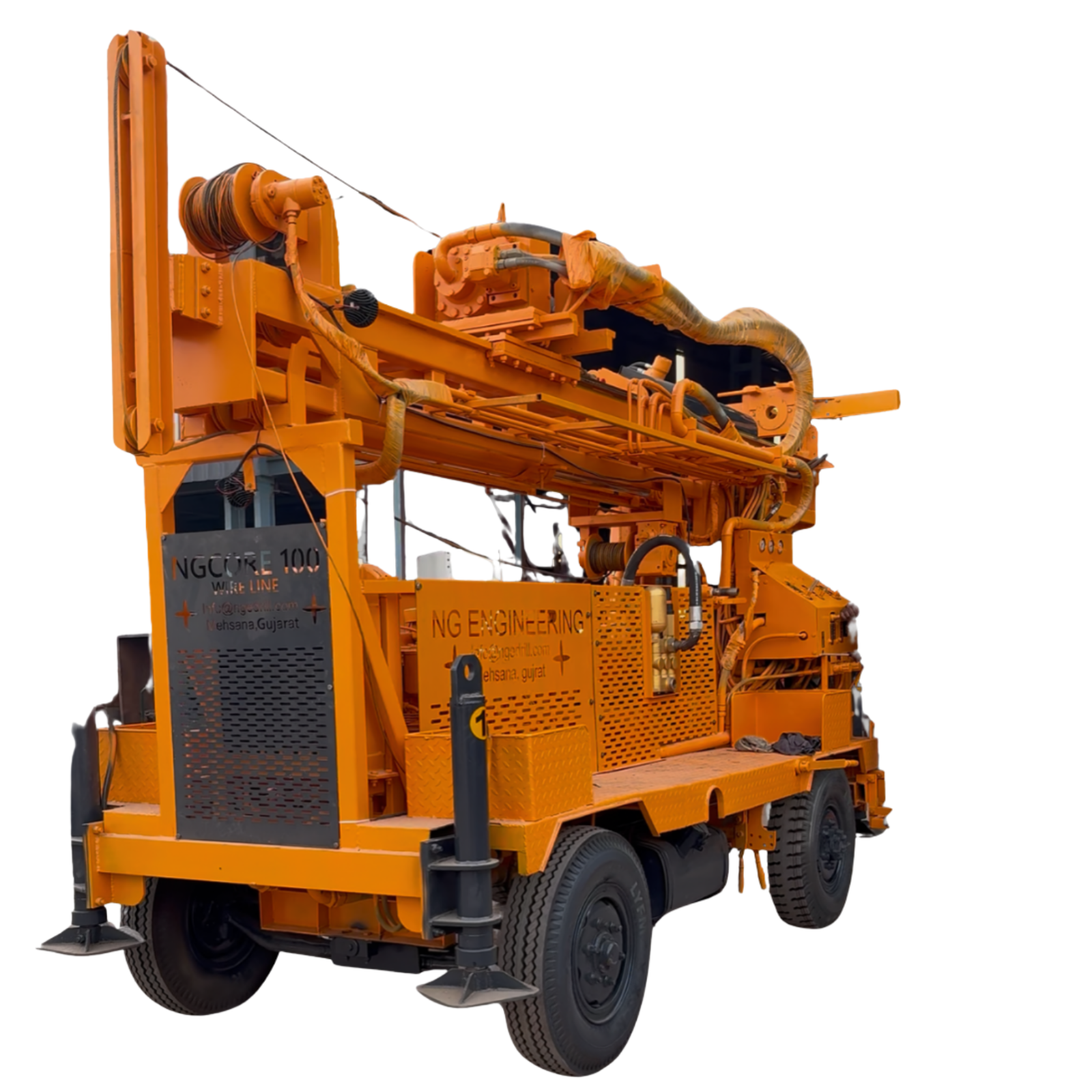

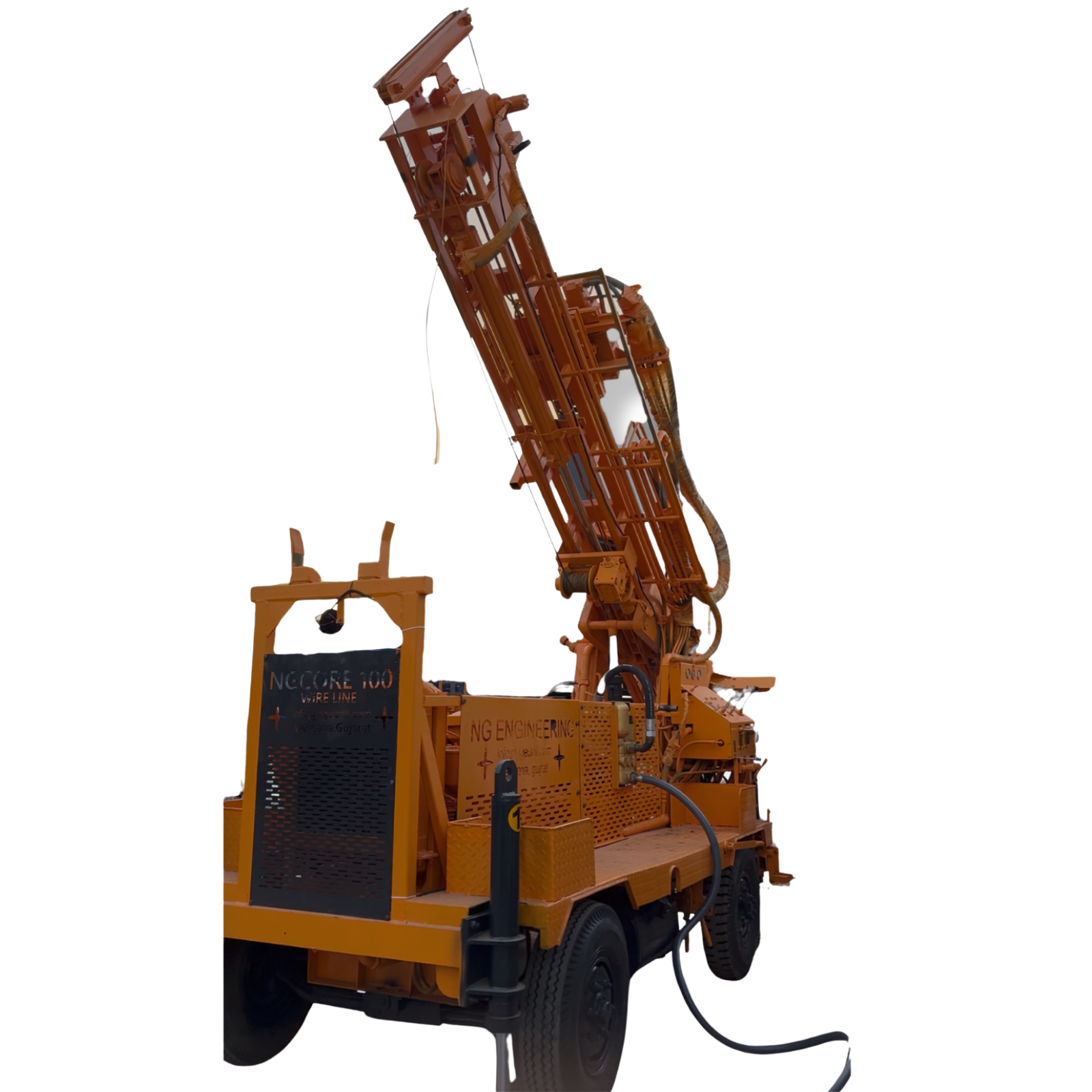

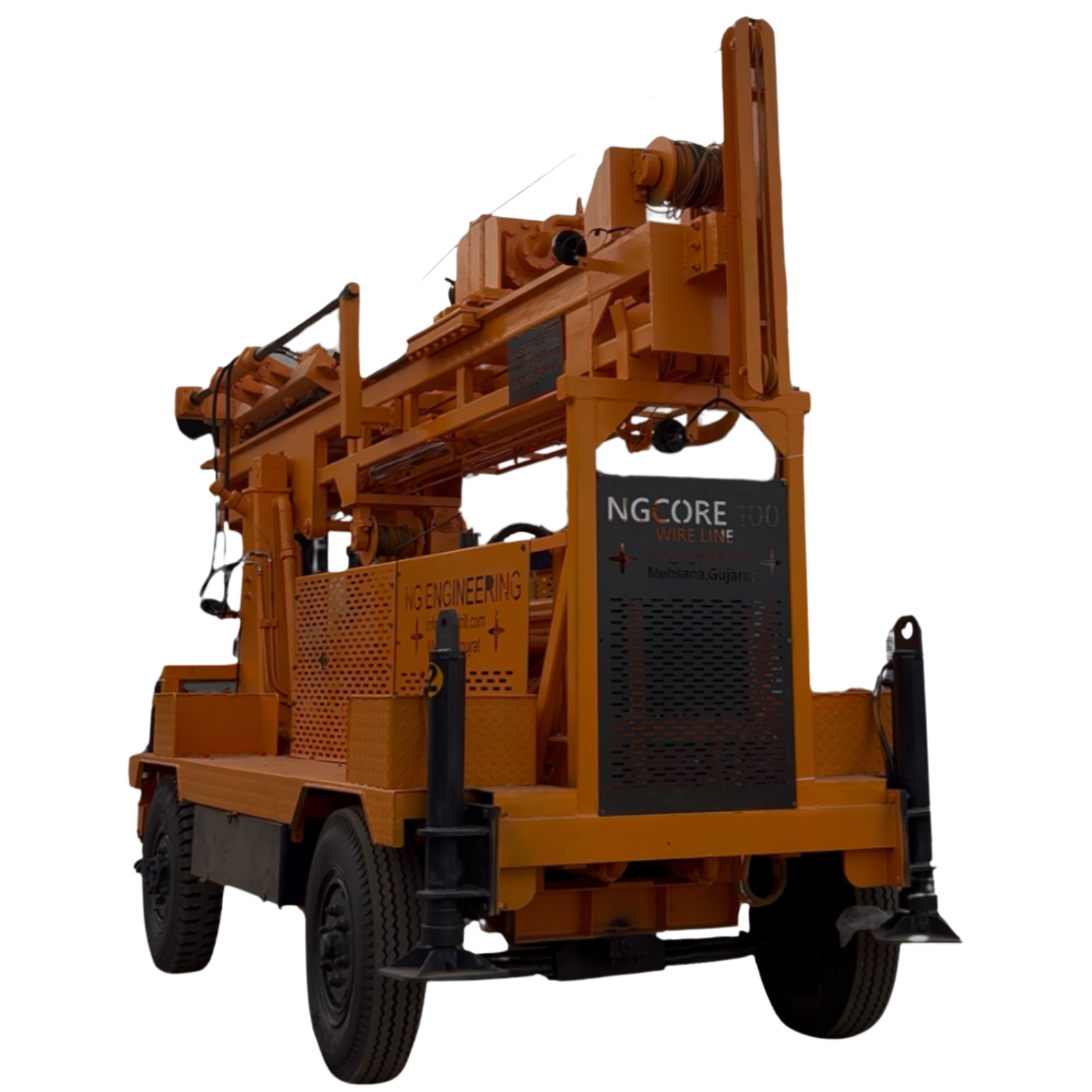

Machine Gallery
NGCORE100 (Trolley) in Detail
Explore the machine configuration, engineering details and overall design of the NGCORE100 (Trolley).
1 / 5
At a Glance
Key Specifications
A quick overview of the most important technical characteristics of the NGCORE100 (Trolley).
Drilling Capacity
200 m
Hole Size
NQ / HQ / PQ
Pull Up Capacity
12,000 kg
Pull Down Capacity
2,000 kg
Engineering note: Performance and drilling capacity can vary depending on formation conditions, drilling method, tooling, bore diameter, operating configuration and project conditions.
Machine Overview
Built for Demanding Projects
An engineering overview of the NGCORE100 (Trolley) drilling platform.
Product Overview
NGCORE100 (Trolley) Core Drilling Rig
The NGCORE100 is a surface exploration core drilling rig with a catalogue-rated drilling capacity of 200 m and NQ/HQ/PQ hole sizes. This configuration is trolley mounted.
core
Project Suitability
The NGCORE100 (Trolley) can be evaluated for projects based on formation, drilling method, target depth, bore diameter, tooling and required production conditions.
Formation and ground conditions
Required drilling depth
Target bore diameter
Selected drilling method
Project production requirements
Engineering Advantages
Key Features of the NGCORE100 (Trolley)
Designed around the practical requirements of demanding drilling projects, with configuration and capabilities selected for the intended application.
02
Hydraulic Rotary Head
Uses a hydraulic rotary head.
Engineering Feature
03
Trolley Mounted
Configured as a trolley-mounted core drilling rig.
Engineering Feature
Project-specific configuration: Final machine configuration, tooling and auxiliary equipment can depend on drilling method, formation, bore diameter and customer project requirements.
Technical Data
Technical Specifications
Detailed technical information for the NGCORE100 (Trolley).
Model
NGCORE100 (Trolley)
Parameter
Specification
Application
Surface Exploration Rig
Drilling Capacity
200 m
Hole Diameter Range
NQ / HQ / PQ
Rotary Head
Hydraulic
Pull Up Capacity
12,000 kg
Pull Down Capacity
2,000 kg
Mud Pump
Triplex / Centrifugal
Prime Mover
Tractor Engine / 80 HP Deck Engine
Mounting
Trolley
Technical specification note
Specifications shown on this page represent the published configuration for this model. Actual drilling performance may vary according to formation conditions, drilling method, tooling, bore diameter, operating configuration and project requirements.
Applications
Where the NGCORE100 (Trolley) Fits
Explore the drilling and engineering applications for which this rig can be considered based on its published configuration.
Project Selection
The final rig selection should consider formation, required depth, bore diameter, drilling method, tooling and project conditions.
01
Geological Exploration
Suitable for surface geological exploration.
Application Category
02
Core Drilling
Designed for core drilling applications.
Application Category
03
Geotechnical Investigation
Suitable for subsurface investigation projects.
Application Category
Not sure if NGCORE100 (Trolley) is right for your project?
Share your target depth, bore diameter, formation, drilling method and project location with our team. We can evaluate the requirements and recommend the appropriate configuration.
Machine Systems
Major Equipment & Systems
Key systems and equipment associated with the published configuration of the NGCORE100 (Trolley).
System 01
Rotary System
Hydraulic rotary head
System 02
Pump System
Triplex / centrifugal pump
Configuration & project requirements
Auxiliary equipment, tooling and system configuration may vary according to drilling method, formation, borehole requirements and the final project specification.
Performance
NGCORE100 (Trolley) Performance Highlights
Key published performance figures for the NGCORE100 (Trolley)configuration.
Drilling Capacity
200 m
Pull Up Capacity
12,000 kg
Pull Down Capacity
2,000 kg
Performance depends on project conditions
Published performance figures are reference values for the stated machine configuration. Actual drilling performance can vary with formation, drilling method, bore diameter, tooling, operating parameters and site conditions.
Explore More
View All Drilling RigsRelated Drilling Rigs
Compare the NGCORE100 (Trolley) with other NGE DRILLSOL machines that may be relevant to your drilling requirements.

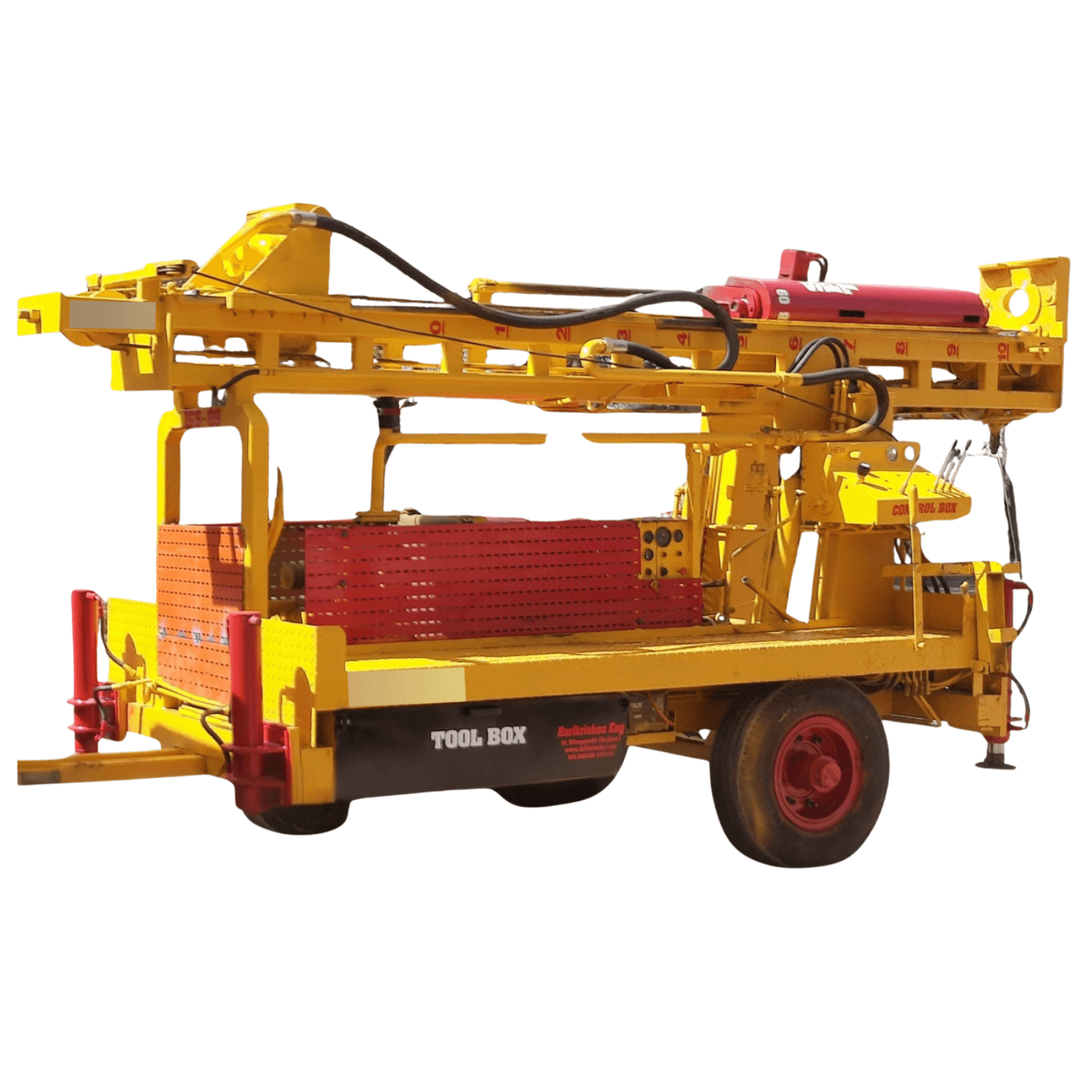

NGCORE50 (Trolley)
core
NGCORE50 (Trolley) Core Drilling Rig
Trolley-mounted core drilling rig for geotechnical and geological investigation.
View Rig

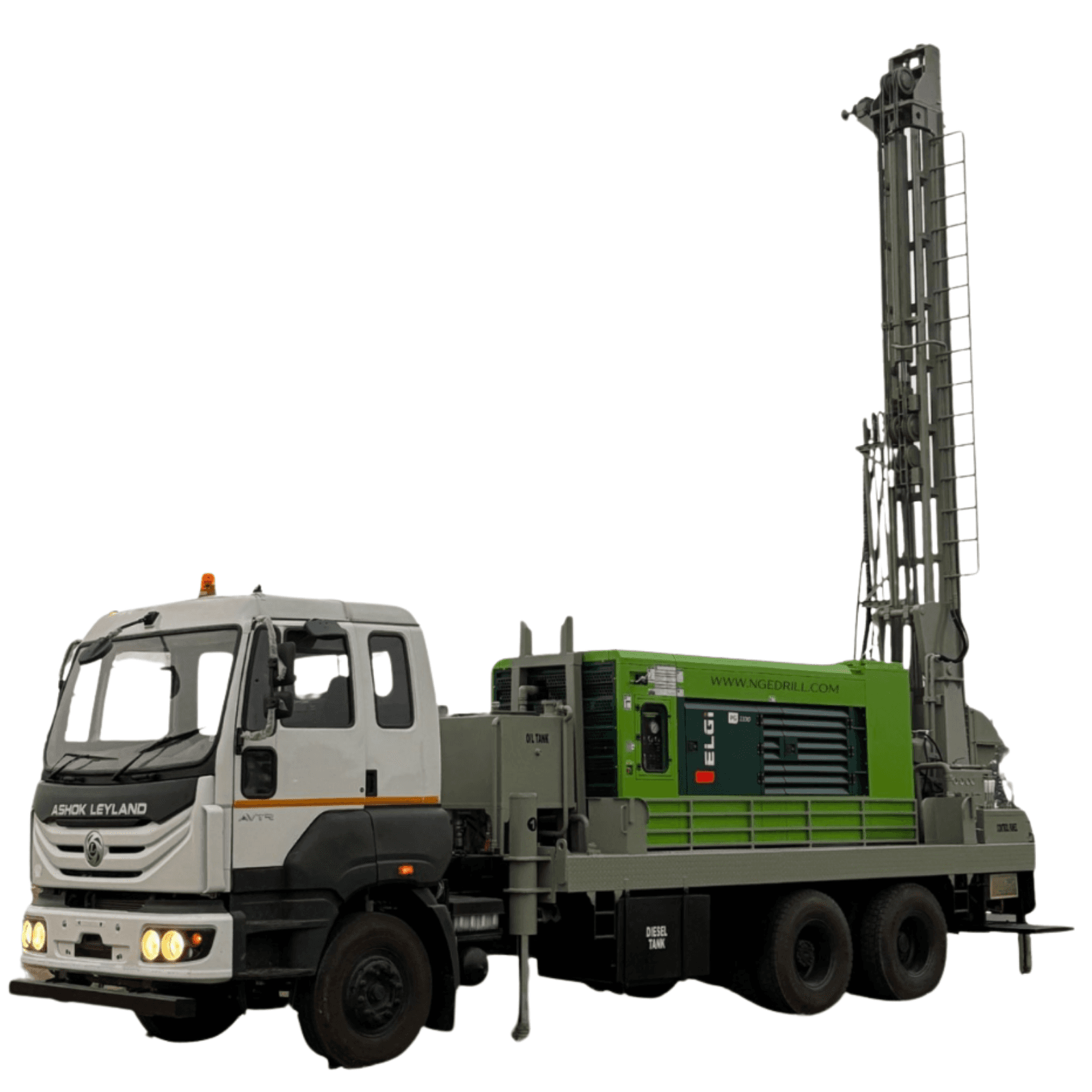

NGDTH200R
