01
Heavy-Duty Top Drive
Uses a heavy-duty top-drive system.
Engineering Feature
water welldth
NGE DRILLSOL
NGDTH200R
NGDTH200R DTH Drilling Rig
Compact DTH drilling platform for water well and direct rotary drilling applications.
Engineered for demanding drilling applications
Application:Water Well
Model
NGDTH200R
Drilling Capacity
200 m
Drilling Capacity
200 m
Hole Diameter
100–300 mm
Pull Up Capacity
11,590 kg
Prime Mover
188 HP Ashok Leyland

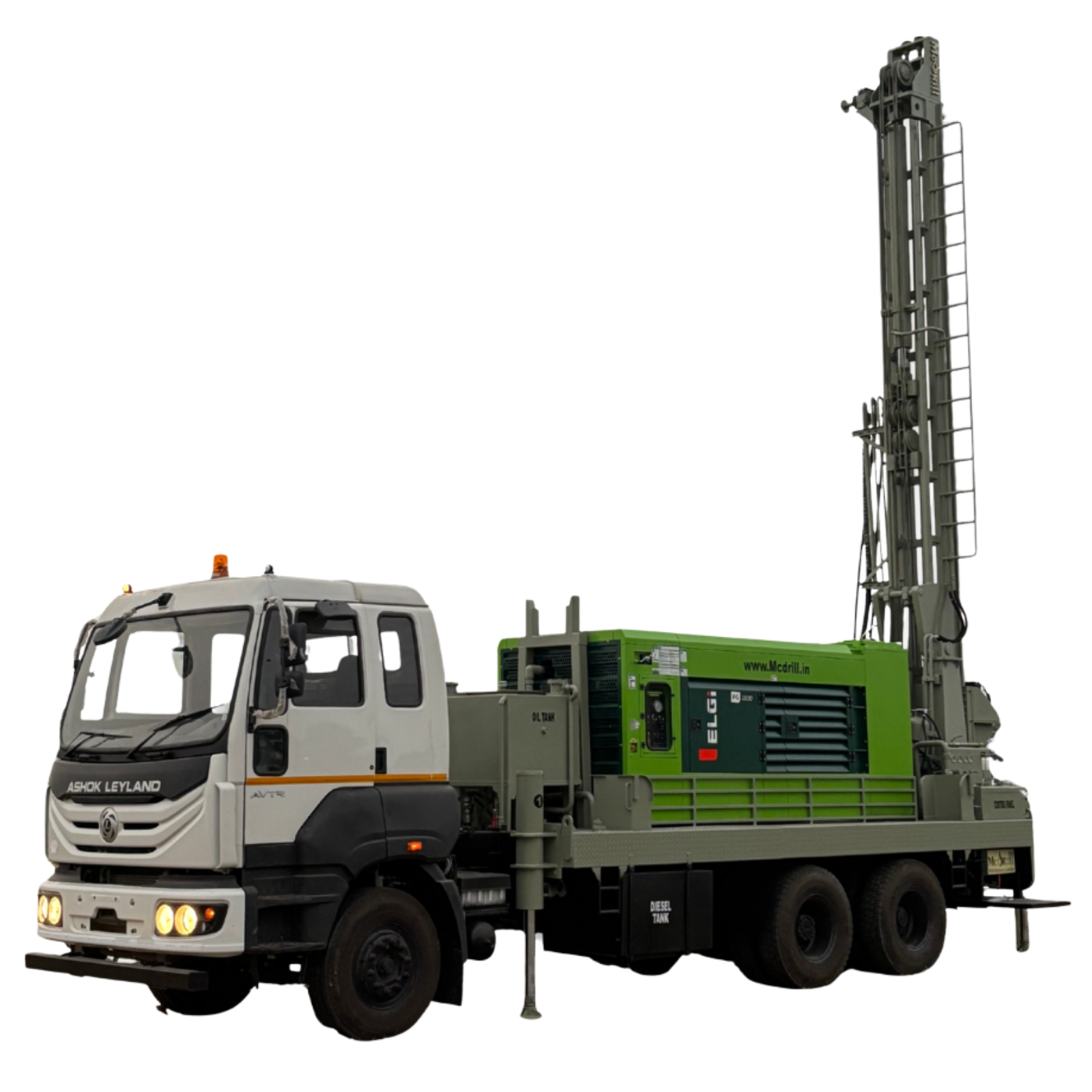

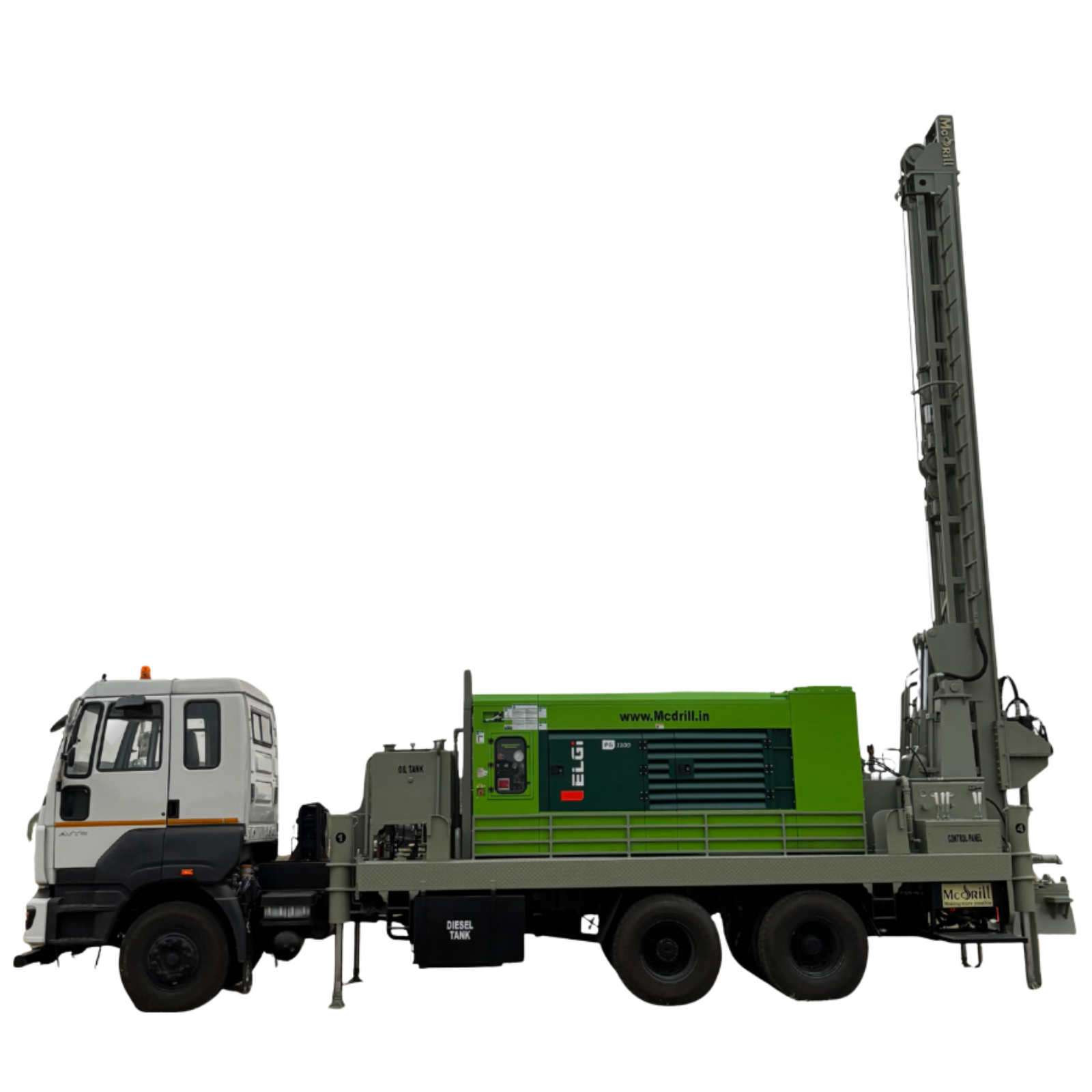

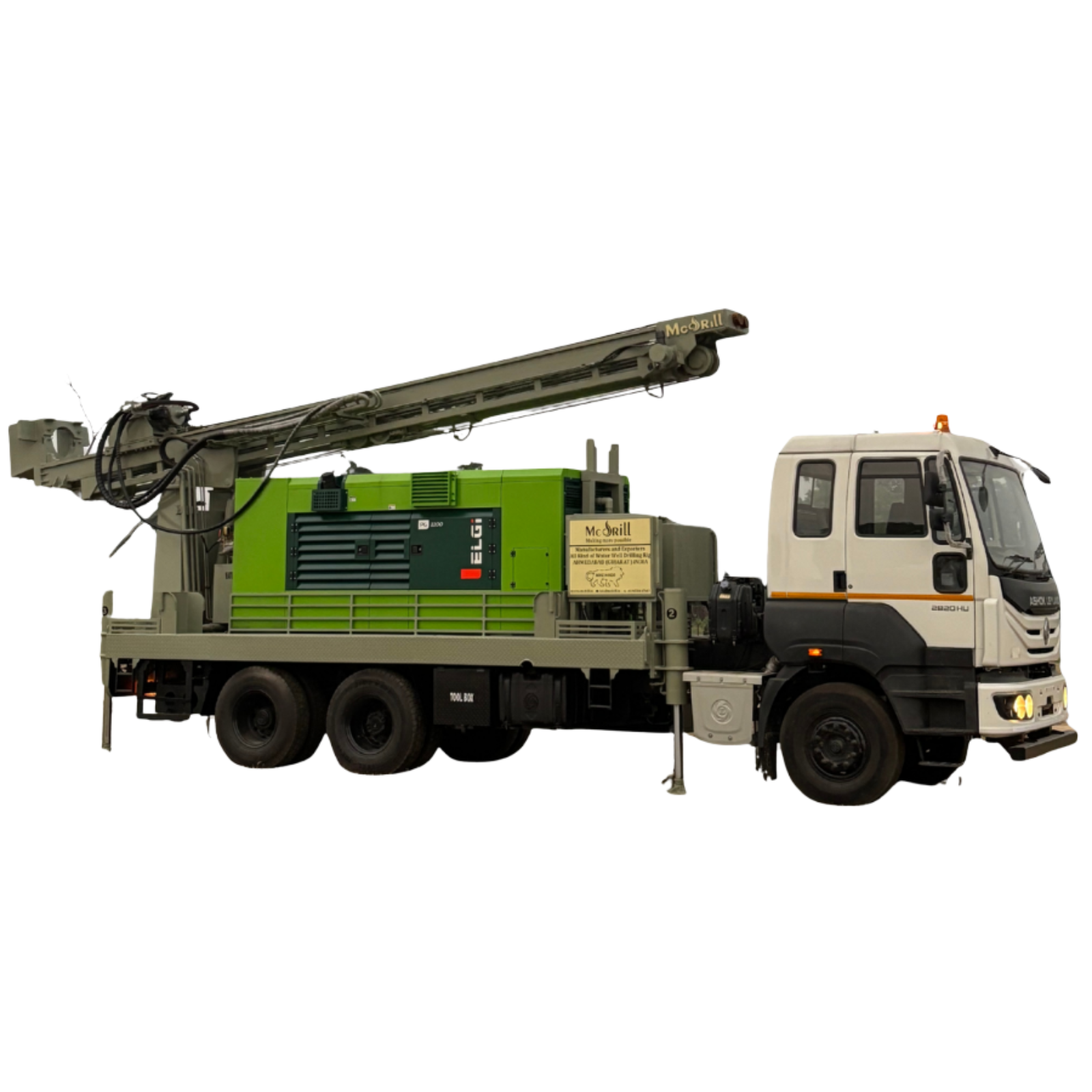

Machine Gallery
NGDTH200R in Detail
Explore the machine configuration, engineering details and overall design of the NGDTH200R.
1 / 4
At a Glance
Key Specifications
A quick overview of the most important technical characteristics of the NGDTH200R.
Drilling Capacity
200 m
Hole Diameter
100–300 mm
Pull Up Capacity
11,590 kg
Prime Mover
188 HP Ashok Leyland
Engineering note: Performance and drilling capacity can vary depending on formation conditions, drilling method, tooling, bore diameter, operating configuration and project conditions.
Machine Overview
Built for Demanding Projects
An engineering overview of the NGDTH200R drilling platform.
Product Overview
NGDTH200R DTH Drilling Rig
The NGDTH200R is a compact drilling rig with a catalogue-rated drilling capacity of 200 m and an 11,590 kg pull up capacity.
water welldth
Project Suitability
The NGDTH200R can be evaluated for projects based on formation, drilling method, target depth, bore diameter, tooling and required production conditions.
Formation and ground conditions
Required drilling depth
Target bore diameter
Selected drilling method
Project production requirements
Engineering Advantages
Key Features of the NGDTH200R
Designed around the practical requirements of demanding drilling projects, with configuration and capabilities selected for the intended application.
02
Compact Drilling Platform
Designed for projects requiring a smaller drilling capacity.
Engineering Feature
03
200 m Capacity
Catalogue-rated drilling capacity of 200 m.
Engineering Feature
Project-specific configuration: Final machine configuration, tooling and auxiliary equipment can depend on drilling method, formation, bore diameter and customer project requirements.
Technical Data
Technical Specifications
Detailed technical information for the NGDTH200R.
Model
NGDTH200R
Parameter
Specification
Operation
Direct Rotary
Drilling Capacity
200 m
Hole Diameter Range
100–300 mm
Drill Mode
Heavy Duty Top Drive
Pull Up Capacity
11,590 kg
Pull Down Capacity
2,000 kg
Mud Pump
Centrifugal Pump
Prime Mover
188 HP Ashok Leyland
Mounting Options
Truck, Trailer, Skid
Technical specification note
Specifications shown on this page represent the published configuration for this model. Actual drilling performance may vary according to formation conditions, drilling method, tooling, bore diameter, operating configuration and project requirements.
Applications
Where the NGDTH200R Fits
Explore the drilling and engineering applications for which this rig can be considered based on its published configuration.
Project Selection
The final rig selection should consider formation, required depth, bore diameter, drilling method, tooling and project conditions.
01
Water Well Drilling
Suitable for water well drilling applications within its rated capacity.
Application Category
02
Rotary Drilling
Catalogue-listed as a direct rotary drilling rig.
Application Category
03
DTH Applications
Can be evaluated for DTH applications based on project requirements.
Application Category
Not sure if NGDTH200R is right for your project?
Share your target depth, bore diameter, formation, drilling method and project location with our team. We can evaluate the requirements and recommend the appropriate configuration.
Machine Systems
Major Equipment & Systems
Key systems and equipment associated with the published configuration of the NGDTH200R.
System 01
Drilling System
Heavy-duty top drive
System 02
Pump System
Centrifugal pump
Configuration & project requirements
Auxiliary equipment, tooling and system configuration may vary according to drilling method, formation, borehole requirements and the final project specification.
Performance
NGDTH200R Performance Highlights
Key published performance figures for the NGDTH200Rconfiguration.
Drilling Capacity
200 m
Pull Up Capacity
11,590 kg
Performance depends on project conditions
Published performance figures are reference values for the stated machine configuration. Actual drilling performance can vary with formation, drilling method, bore diameter, tooling, operating parameters and site conditions.
