Water WellRotary

NGE Drillsol • Water Well

NGDR2000 Rotary Drilling Rig

Heavy-duty direct rotary and DTH drilling rig for deep drilling applications.

Engineered for professional drilling applications and project-specific requirements
Request Technical DetailsDiscuss NGDR2000
Primary category:Water Well
NGDR2000 Rotary Drilling Rig drilling rig by NGE Drillsol

Model

NGDR2000

Drilling Capacity

850 m

Drilling Capacity
850 m
Hole Diameter
300–1200 mm
Pull Up Capacity
80,000 kg
Prime Mover
235–300 HP
Machine Gallery

NGDR2000 in Detail

Explore the machine configuration, engineering details and overall design of the NGDR2000.

1 / 6

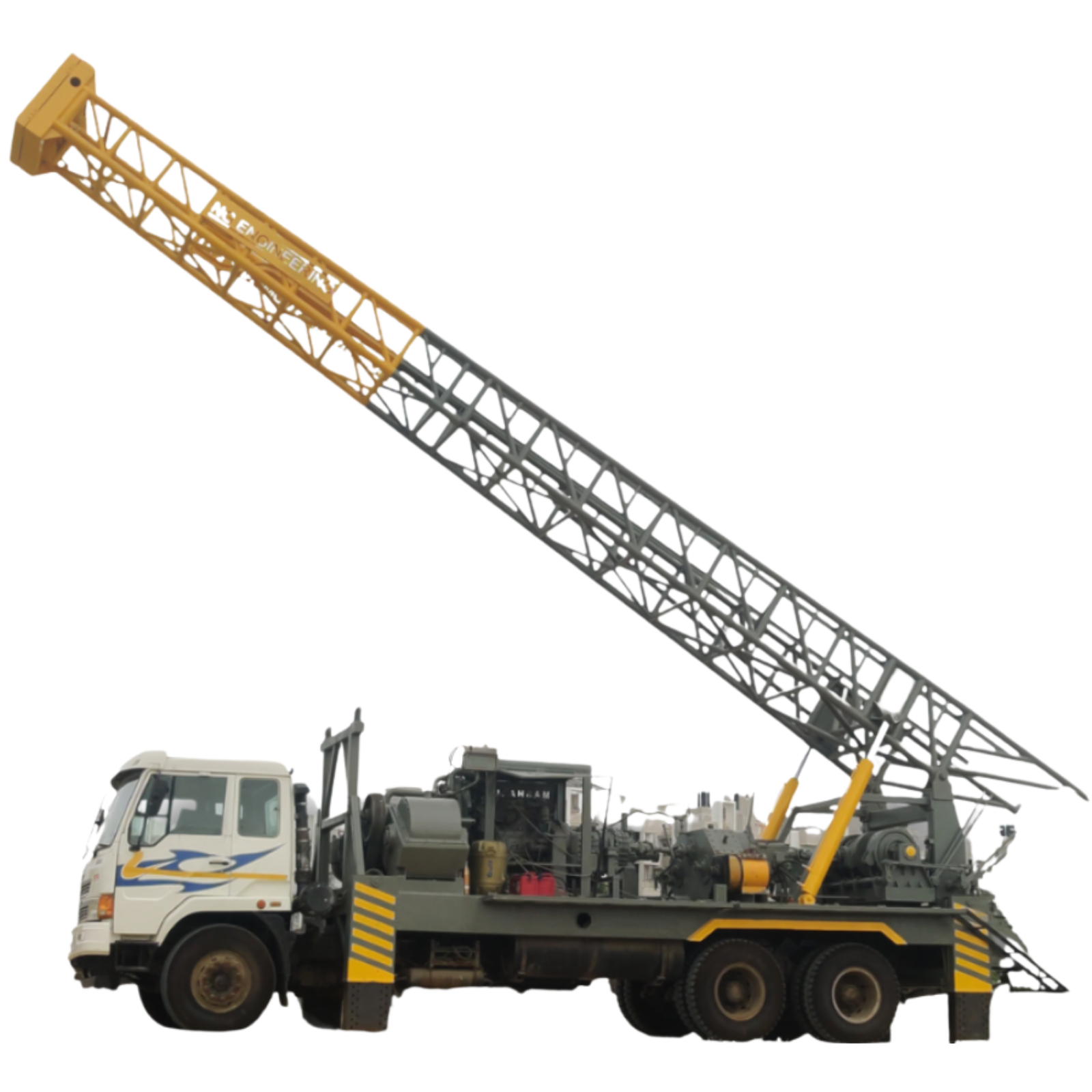

ngdr2000 drilling rig - photo 1
NGDR2000 at a Glance

NGDR2000 Key Specifications

A summary of the published technical characteristics available for the NGDR2000 drilling rig.

Drilling Capacity
850 m
Hole Diameter
300–1200 mm
Pull Up Capacity
80,000 kg
Prime Mover
235–300 HP

Engineering note: Actual drilling performance and capacity can vary with geological formation, drilling method, tooling, bore diameter, operating configuration and site conditions. Final machine selection should be based on the complete project requirement.

NGDR2000 Overview

What is the NGDR2000?

The NGDR2000 Rotary Drilling Rig is part of NGE Drillsol's Water Well, Rotary range. Heavy-duty direct rotary and DTH drilling rig for deep drilling applications.

Product Overview

NGDR2000 Rotary Drilling Rig

The NGDR2000 is designed for direct rotary and DTH drilling applications, with a drilling capacity of 850 m and a heavy-duty configuration suitable for demanding drilling projects.

Water WellRotary

Is the NGDR2000 Suitable for Your Project?

Final suitability should be evaluated against the actual drilling conditions of your project, not by model capacity alone.

Formation and ground conditions
Required drilling depth
Target bore diameter
Selected drilling method
Tooling and power requirements
Discuss the NGDR2000
Engineering Advantages

Key Features of the NGDR2000

Designed around the practical requirements of demanding drilling projects, with configuration and capabilities selected for the intended application.

01

Direct Rotary & DTH

Designed to support both direct rotary and DTH drilling operations.

Engineering Feature
02

Deep Drilling

Catalogue-rated drilling capacity of 850 m.

Engineering Feature
03

Heavy Pull Capacity

Provides a catalogue-rated pull up capacity of 80,000 kg.

Engineering Feature
04

Flexible Mounting

Available in truck, trailer and skid mounting configurations.

Engineering Feature

Project-specific configuration: Final machine configuration, tooling and auxiliary equipment can depend on drilling method, formation, bore diameter and customer project requirements.

Technical Data

NGDR2000 Technical Specifications

Published technical parameters and machine specifications for the NGDR2000 drilling rig.

Rig Model

NGDR2000

Operation
Direct Rotary / DTH
Drilling Capacity
850 m
Hole Diameter Range
300–1200 mm
Draw Works
Pneumatic Clutch
Pull Up Capacity
80,000 kg
Mud Pump
Dual Acting Duplex
Prime Mover
235–300 HP
Mounting Options
Truck, Trailer, Skid

NGDR2000 specification note

Specifications shown represent the published configuration for this model. Actual performance, drilling capacity and equipment configuration can vary according to formation conditions, drilling method, tooling, bore diameter and project requirements. Confirm the final technical configuration with NGE Drillsol before ordering.

Applications

Where the NGDR2000 Fits

Explore the drilling and engineering applications for which this rig can be considered based on its published configuration.

Project Selection

The final rig selection should consider formation, required depth, bore diameter, drilling method, tooling and project conditions.

01

Water Well Drilling

Suitable for deep water well drilling projects.

Application Category
02

Rotary Drilling

Designed for direct rotary drilling applications.

Application Category
03

DTH Drilling

Supports DTH drilling operations.

Application Category

Not sure if NGDR2000 is right for your project?

Share your target depth, bore diameter, formation, drilling method and project location with our team. We can evaluate the requirements and recommend the appropriate configuration.

Discuss Your Project
Machine Systems

Major Equipment & Systems

Key systems and equipment associated with the published configuration of the NGDR2000.

System 01

Draw Works

Pneumatic clutch
Heavy-duty lifting system

System 02

Mud System

Dual acting duplex mud pump

Configuration & project requirements

Auxiliary equipment, tooling and system configuration may vary according to drilling method, formation, borehole requirements and the final project specification.

Performance

NGDR2000 Performance Highlights

Key published performance figures for the NGDR2000 configuration.

Drilling Capacity

850 m

Pull Up Capacity

80,000 kg

Performance depends on project conditions

Published performance figures are reference values for the stated machine configuration. Actual drilling performance can vary with formation, drilling method, bore diameter, tooling, operating parameters and site conditions.

NGDR2000 FAQ

Frequently Asked Questions About NGDR2000

Answers to common questions about the NGDR2000 drilling rig, including its drilling capacity, applications, configuration and project suitability.

The product catalogue specifies a drilling capacity of 850 m.

Yes. The catalogue lists Direct Rotary / DTH as its operation.

The catalogue lists truck, trailer and skid mounting options.
