01
DTH + Rotary
Designed for DTH cum rotary drilling operations.
Engineering Feature
water welldth
NGE DRILLSOL
NGDTH600R

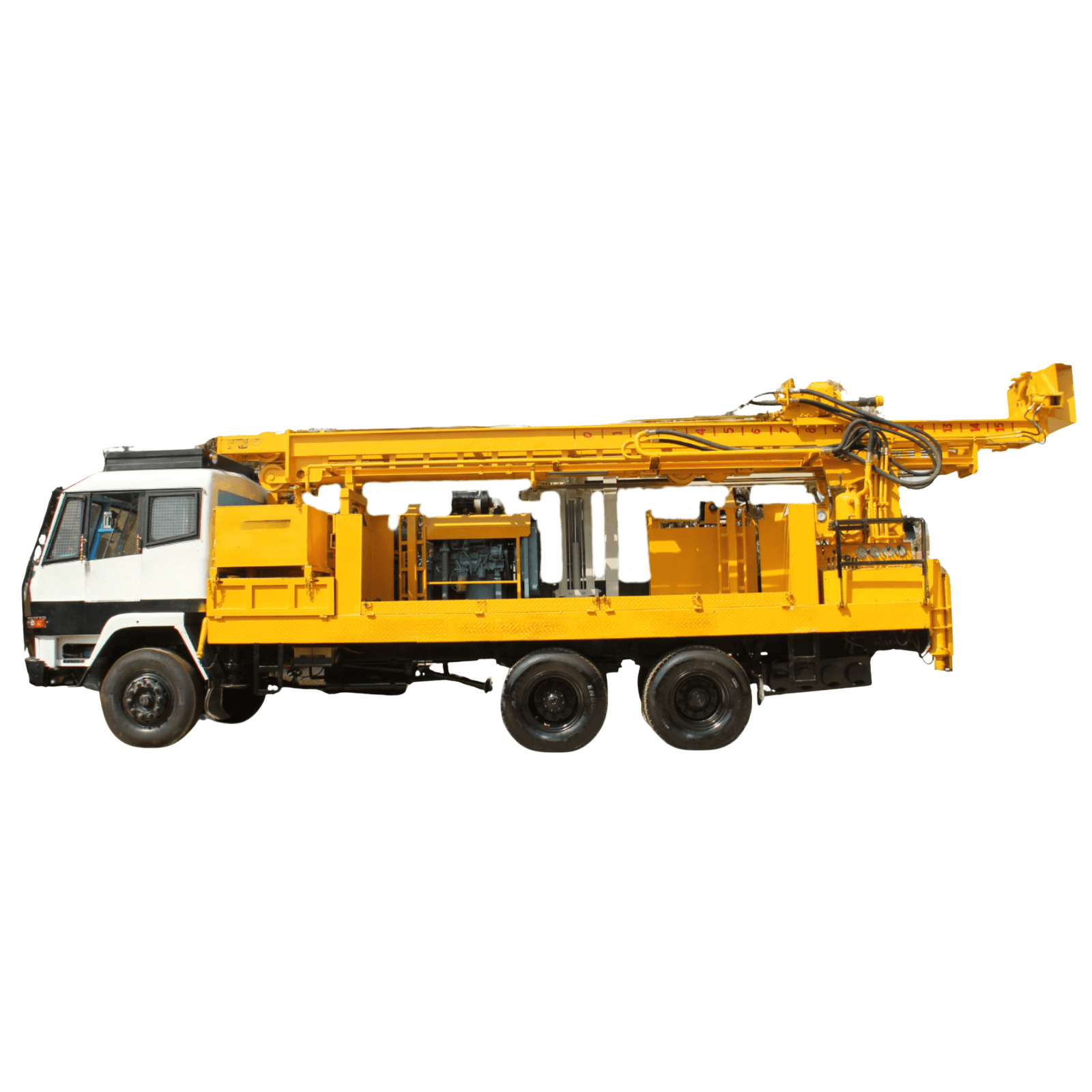

NGDTH600R DTH Drilling Rig
High-capacity DTH and rotary drilling platform for water well and deep drilling applications.
Engineered for demanding drilling applications
Application:Water Well
Model
NGDTH600R
Drilling Capacity
600 m
Drilling Capacity
600 m
Hole Diameter
100–300 mm
Pull Up Capacity
32,000 kg
Prime Mover
235–300 HP Ashok Leyland

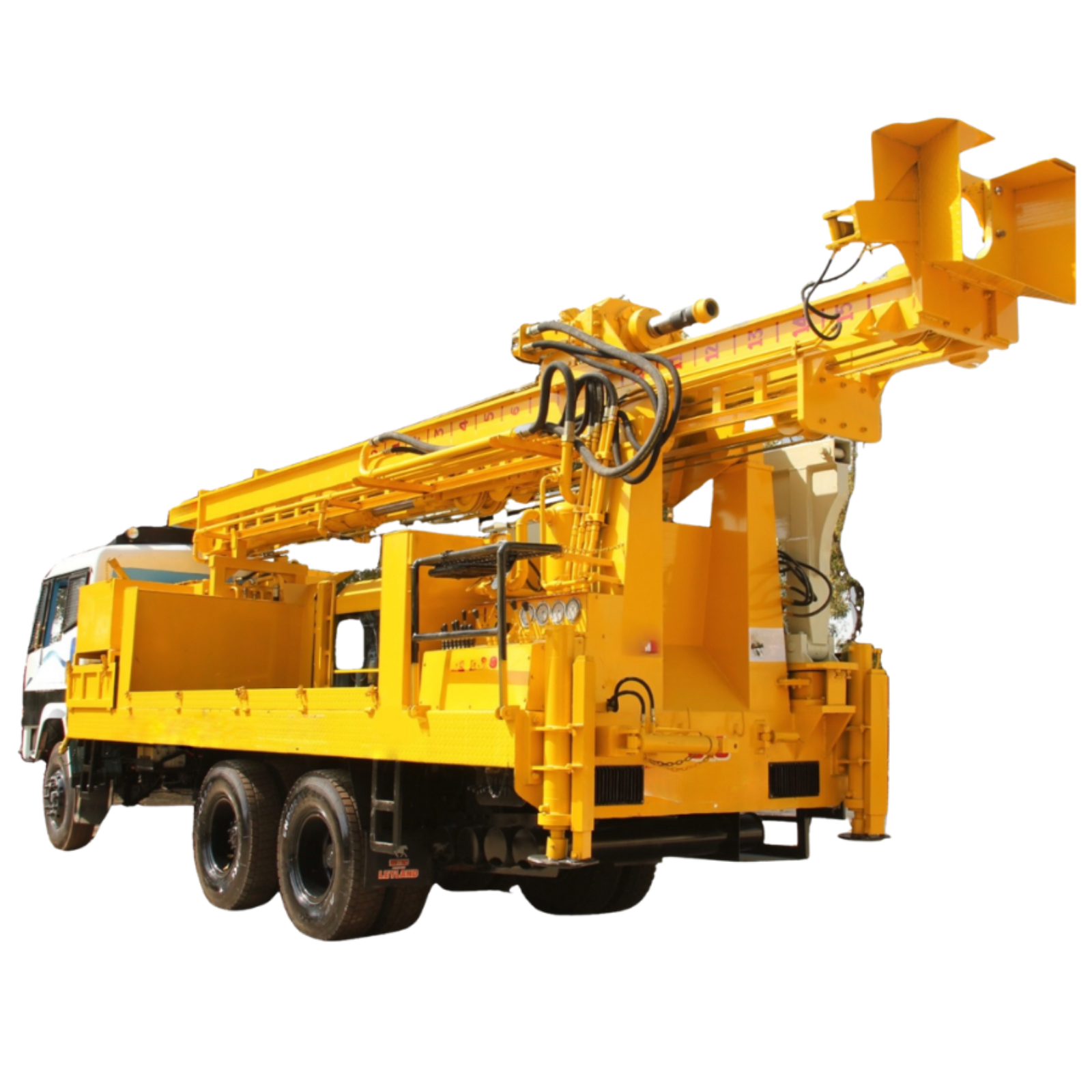

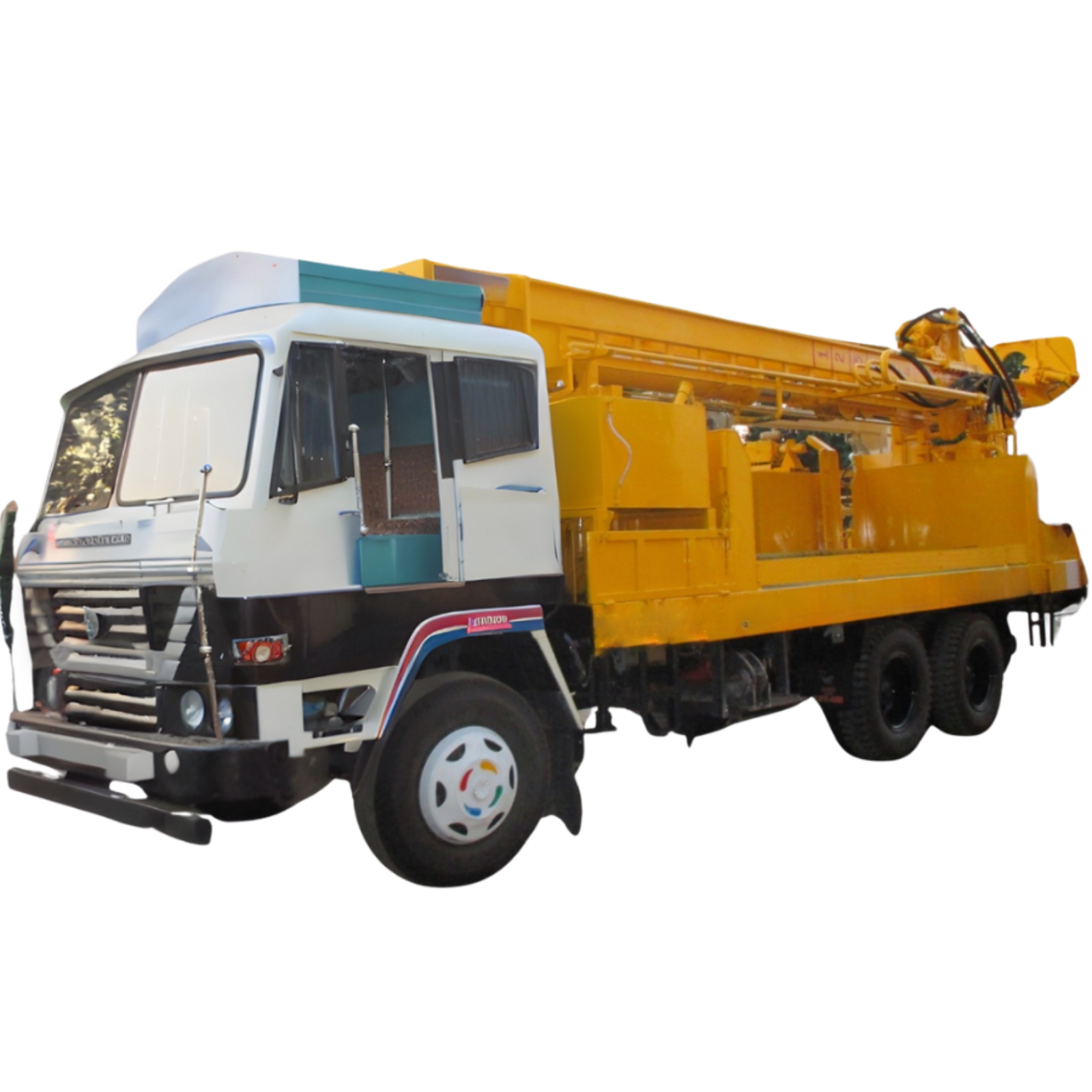

Machine Gallery
NGDTH600R in Detail
Explore the machine configuration, engineering details and overall design of the NGDTH600R.
1 / 3
At a Glance
Key Specifications
A quick overview of the most important technical characteristics of the NGDTH600R.
Drilling Capacity
600 m
Hole Diameter
100–300 mm
Pull Up Capacity
32,000 kg
Prime Mover
235–300 HP Ashok Leyland
Engineering note: Performance and drilling capacity can vary depending on formation conditions, drilling method, tooling, bore diameter, operating configuration and project conditions.
Machine Overview
Built for Demanding Projects
An engineering overview of the NGDTH600R drilling platform.
Product Overview
NGDTH600R DTH Drilling Rig
The NGDTH600R is a DTH drilling rig designed for DTH cum rotary drilling with a catalogue-rated capacity of 600 m and a 32,000 kg pull up capacity.
water welldth
Project Suitability
The NGDTH600R can be evaluated for projects based on formation, drilling method, target depth, bore diameter, tooling and required production conditions.
Formation and ground conditions
Required drilling depth
Target bore diameter
Selected drilling method
Project production requirements
Engineering Advantages
Key Features of the NGDTH600R
Designed around the practical requirements of demanding drilling projects, with configuration and capabilities selected for the intended application.
02
Heavy-Duty Top Drive
Uses a heavy-duty top-drive drilling system.
Engineering Feature
03
Deep Drilling
Catalogue-rated drilling capacity of 600 m.
Engineering Feature
04
Flexible Mounting
Available in truck, trailer and skid configurations.
Engineering Feature
Project-specific configuration: Final machine configuration, tooling and auxiliary equipment can depend on drilling method, formation, bore diameter and customer project requirements.
Technical Data
Technical Specifications
Detailed technical information for the NGDTH600R.
Model
NGDTH600R
Parameter
Specification
Operation
DTH cum Rotary
Drilling Capacity
600 m
Hole Diameter Range
100–300 mm
Drive Mode
Heavy Duty Top Drive
Pull Up Capacity
32,000 kg
Pull Down Capacity
3,000 kg
Mud Pump
7×10 Dual Acting Duplex
Prime Mover
235–300 HP Ashok Leyland
Mounting Options
Truck, Trailer, Skid
Technical specification note
Specifications shown on this page represent the published configuration for this model. Actual drilling performance may vary according to formation conditions, drilling method, tooling, bore diameter, operating configuration and project requirements.
Applications
Where the NGDTH600R Fits
Explore the drilling and engineering applications for which this rig can be considered based on its published configuration.
Project Selection
The final rig selection should consider formation, required depth, bore diameter, drilling method, tooling and project conditions.
01
Water Well Drilling
Suitable for deep water well drilling.
Application Category
02
DTH Drilling
Designed for DTH drilling applications.
Application Category
03
Rotary Drilling
Supports rotary drilling operations.
Application Category
Not sure if NGDTH600R is right for your project?
Share your target depth, bore diameter, formation, drilling method and project location with our team. We can evaluate the requirements and recommend the appropriate configuration.
Machine Systems
Major Equipment & Systems
Key systems and equipment associated with the published configuration of the NGDTH600R.
System 01
Drilling System
Heavy-duty top drive
System 02
Mud System
7×10 dual acting duplex mud pump
Configuration & project requirements
Auxiliary equipment, tooling and system configuration may vary according to drilling method, formation, borehole requirements and the final project specification.
Performance
NGDTH600R Performance Highlights
Key published performance figures for the NGDTH600Rconfiguration.
Drilling Capacity
600 m
Pull Up Capacity
32,000 kg
Pull Down Capacity
3,000 kg
Performance depends on project conditions
Published performance figures are reference values for the stated machine configuration. Actual drilling performance can vary with formation, drilling method, bore diameter, tooling, operating parameters and site conditions.
Explore More
View All Drilling RigsRelated Drilling Rigs
Compare the NGDTH600R with other NGE DRILLSOL machines that may be relevant to your drilling requirements.

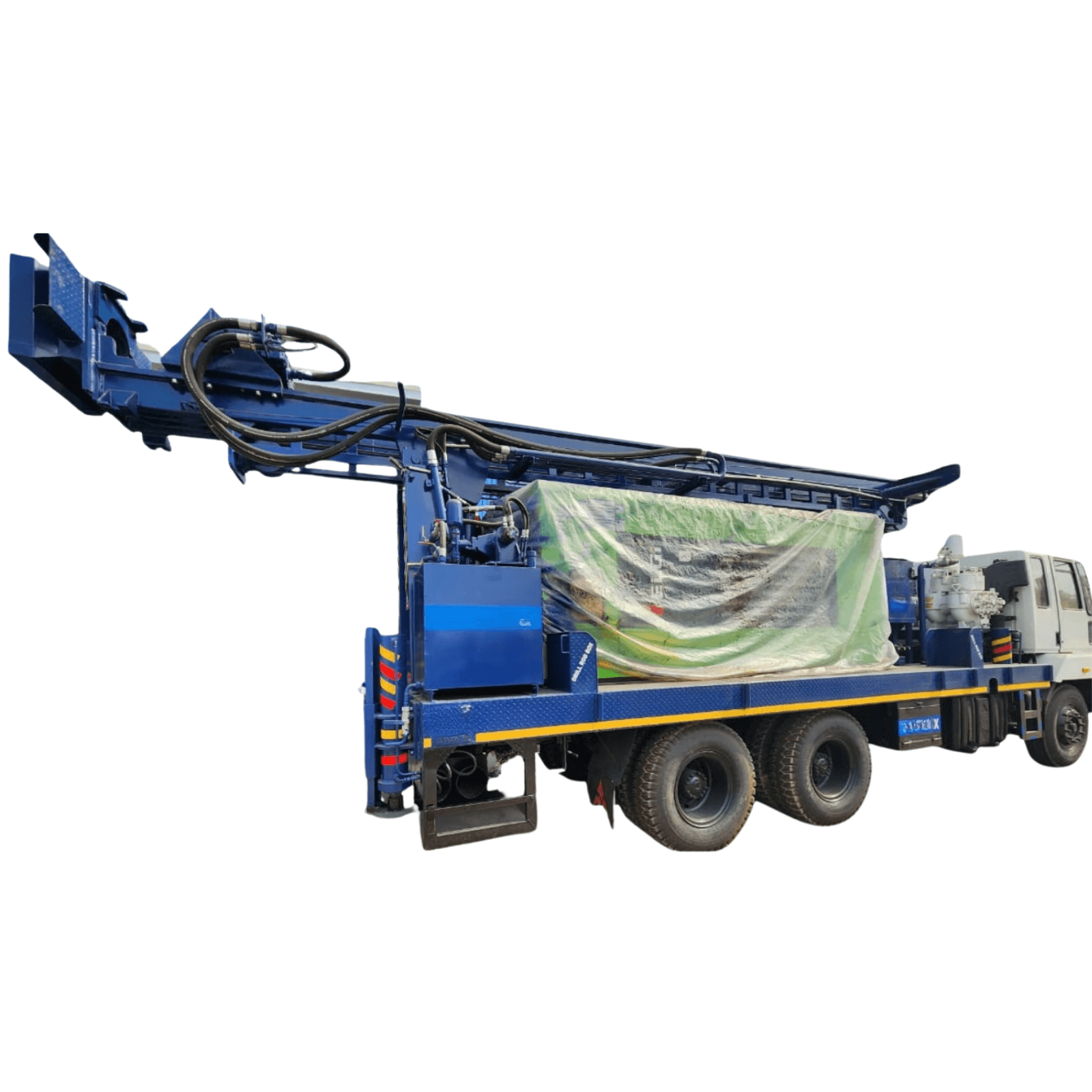

NGDTH300R
